Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity

Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity
Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity

Grote Afbeelding :  Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity

Productdetails:
Plaats van herkomst: Jiangsu, China
Merknaam: Welldone
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: $3,300-3,600
Contact

Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity

beschrijving
Spanning: 220V-480V (TBD) Stroom: 3,5 kW
Dimensie: 650*500*1550mm Gewicht: 120 kg
Verwarmingsmethode: Elektrische verwarming Materiaal: Sus304, SUS316L
Luchtinlaattemperatuur: 30~300℃ Verdampingscapaciteit: 1Kg/h
Het drogen Temperatuur: 150-300°C Droogefficiëntie: 50%
Kerncomponenten: Pomp, tandwiel, motor, PLC Bouwmateriaal: SUS304/SUS316L/Titanium
Verwarmingsbron: Elektrisch Manier om te ontladen: Handmatig/pneumatisch/elektrisch
Vochtinhoud: 40-60% (tot 90%)
Markeren:

30~300℃ Air Inlet Temperature Control Spray Dryer

,

1kg/h Evaporation Capacity Lab Spray Dryer

,

2 Years Warranty Mini Spray Dryer

LPG-5 Lab Small Spray Dryer Mini / Laboratory Mini Spray Dryer Machine
Product Overview
The LPG-5 lab small spray dryer is designed for laboratory-scale drying applications with enhanced features to address common industry challenges. Its optimized design includes enlarged drying tower diameter and arc transitions to minimize flavor wall adhesion issues.
Key Features
  • High-speed drying capability - evaporates 95%-98% of water in seconds, ideal for heat-sensitive materials
  • Produces uniform powder with excellent solubility, fluidity, and purity
  • Simplified operation - converts liquids with 40-60% moisture content (up to 90% for special materials) to powder in one step
  • Adjustable product parameters - size, bulk density, and moisture content can be customized
  • Optional cooling device maintains lower product temperature
  • Optional Chamber Air Jet system reduces wall adhesion
Technical Specifications
Item Value
Type Spray Drying Equipment
Applications Chemicals, Plastics, Food Processing
Construction Material SUS304, SUS316L, Titanium
Voltage 220V-480V (TBD)
Power 2.2KW-255KW
Drying Temperature 150-300℃
Evaporation Capacity 1.5L-5000L
Warranty 2 years

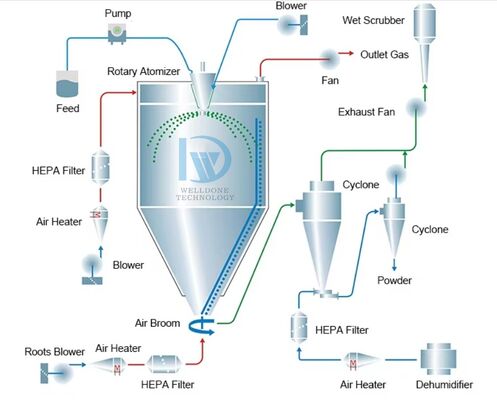

Working Principle
Filtered and heated air enters the dryer in a spiral pattern through an air distributor. Liquid material is atomized into fine droplets by a high-speed rotary atomizer. The droplets contact the hot air briefly, resulting in rapid drying. Final powder products discharge continuously from the drying tower and cyclone separator, while waste air exits through the exhaust fan.

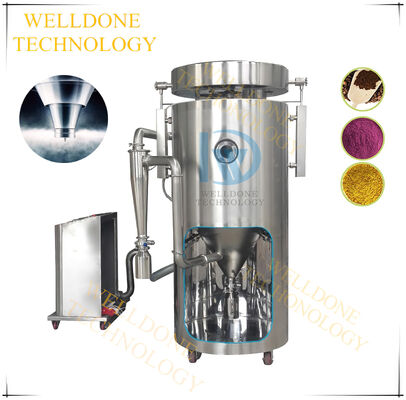

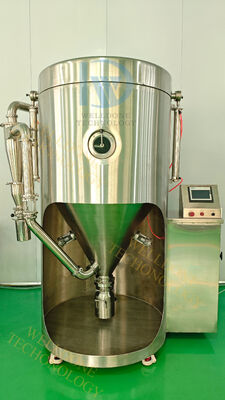

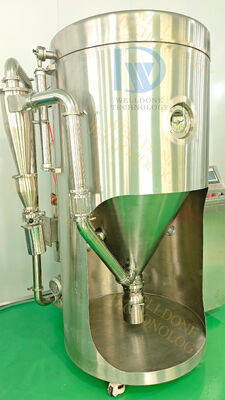

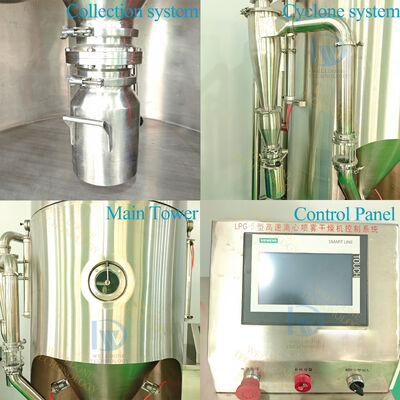

Product Images
Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity 0 Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity 1 Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity 2
Our Comprehensive Services
Pre-Sale Services:
  • Technical data for equipment selection
  • Pilot testing
  • Material analysis and selection advice
  • Flow chart and basic drawing provision
  • Technical design support
During Sale Services:
  • Factory layout planning
  • Regular manufacturing progress reports
  • Complete manufacturing and shipping supervision
  • Detailed documentation including delivery lists
  • Clear serial numbering for all components
After-Sale Services:
  • On-site installation support
  • Commissioning and operator training
  • Maintenance and repair assistance
  • One year spare parts provision
  • Two-year quality warranty
Company Values
Vision: Building lasting relationships with customers as friends and family
Mission: Delivering superior quality, service, and innovation in machinery technology
Values: Professionalism, Progress, Efficiency, and Customer Focus
