Environmental Friendly Food Level Spray Dryer with Explosion Resistance and Low Temperature Drying

Certificaat
China Changzhou Welldone Machinery Technology Co.,Ltd certificaten
China Changzhou Welldone Machinery Technology Co.,Ltd certificaten
Klantenoverzichten
De droger en de granulator werken goed, GOED UITGEVOERD!!

—— Byungyun Ha

Alle neveldroger, mixer van de dienblad drogere, kegel vacuüm drogere en dubbele schroef zijn gekwalificeerd, ben ik gelukkig met hen, spoedig zal zoeken een ander materiaal van u

—— Manoel

Zowel zijn de kwaliteit als de dienst groot, bent u een betrouwbare vriend. :)

—— George Clemente

Ik ben online Chatten Nu

Environmental Friendly Food Level Spray Dryer with Explosion Resistance and Low Temperature Drying

Environmental Friendly Food Level Spray Dryer with Explosion Resistance and Low Temperature Drying
Environmental Friendly Food Level Spray Dryer with Explosion Resistance and Low Temperature Drying Environmental Friendly Food Level Spray Dryer with Explosion Resistance and Low Temperature Drying Environmental Friendly Food Level Spray Dryer with Explosion Resistance and Low Temperature Drying Environmental Friendly Food Level Spray Dryer with Explosion Resistance and Low Temperature Drying Environmental Friendly Food Level Spray Dryer with Explosion Resistance and Low Temperature Drying

Grote Afbeelding :  Environmental Friendly Food Level Spray Dryer with Explosion Resistance and Low Temperature Drying

Productdetails:
Plaats van herkomst: China
Merknaam: WELLDONE
Certificering: CE, ISO 9001: 2008, ISO 10004
Modelnummer: LPG-(5-2000)
Document: LPG.pdf
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1SET
Prijs: Bespreekbaar
Verpakking Details: Houten kist + plastic folie + stalen frame
Levertijd: 30-90 werkdagen
Betalingscondities: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen: 10 sets/maanden

Environmental Friendly Food Level Spray Dryer with Explosion Resistance and Low Temperature Drying

beschrijving
Naam: Milieuvriendelijke accu-sproeidroger op voedingsniveau, explosiebestendig en drogen bij lage tempera Spanning: 380V/415V/480V
Hertz: 50 Hz, Materiaal: SUS316L
Droogtemperatuur: 120-350℃ Verwarmingsbron: Benzine/Diesel
Droogefficiëntie: 70% Speciaal ontwerp: Explosiebestendigheid/drogen bij lage temperatuur
Markeren:

Environmental Friendly Spray Dryer

,

Food Level Spray Drying Machine

,

Explosion Resistance Industrial Spray Dryer

Environmental Friendly and Food Level Battery Spray Dryer with Explosion Resistance and Low Temperature Drying
Spray drying is one of the most popular industrial drying methods, capable of producing powder directly from liquid or paste materials.
Key Features
  • High-Speed Drying: Liquid raw material surface area increases dramatically when sprayed, enabling 95%-98% water evaporation within seconds. Ideal for heat-sensitive materials with minimal drying time.
  • Superior Product Quality: Produces uniform, soluble, free-flowing powders with high purity and excellent consistency.
  • Simplified Process: Easy operation and control. Converts materials with 40-60% moisture content (up to 90% for special materials) directly into powder without additional grinding or sieving steps.
  • Adjustable Parameters: Customizable product size, bulk density, and moisture content within specified ranges.
Operating Principle
Filtered and heated air enters the dryer in a spiral pattern through an air distributor. Liquid raw material is atomized into fine mist beads by a high-speed rotary atomizer at the tower top. Contact with hot air rapidly dries the liquid into solid powder, which is continuously discharged from the drying tower bottom and cyclone separator. Exhaust air is removed by the exhaust fan.

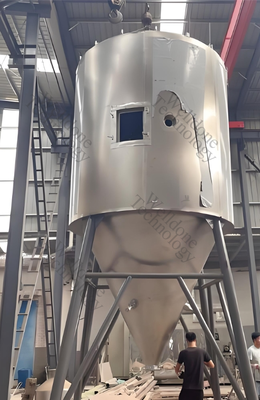

Spray dryer equipment overview Spray dryer internal components
Technical Specifications
Technical parameters table for spray drying equipment

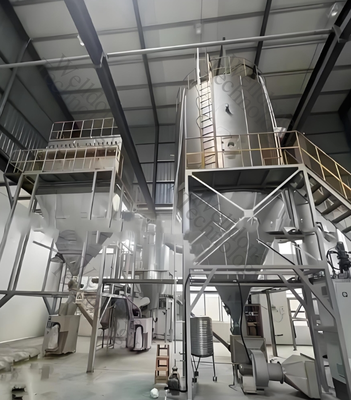

Spray Dryer in Operation

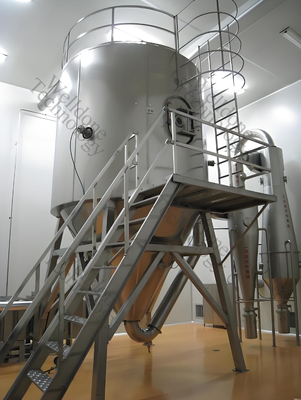

Spray dryer operating in industrial setting
Customer Support Services
Customer service overview
Pre-Sales Services
  • Technical data for equipment selection assistance
  • Pilot testing services
  • Equipment selection and material analysis consultation
  • Process flow diagrams and basic drawings
  • Technical design support
Sales Services
  • Factory layout planning according to contract specifications
  • Manufacturing to relevant industry standards
  • Bi-weekly manufacturing progress reports
  • Complete manufacturing and transportation tracking
  • Shipping case documentation with standard marks
  • Freight loading photographic documentation
  • Detailed delivery and freight loading lists
  • Serialized packaging for easy identification and assembly
After-Sales Services
  • On-site installation guidance by service engineers
  • Commissioning testing and operator training
  • Maintenance and repair support
  • One-year spare parts provision
  • Two-year quality warranty
Packaging & Delivery
Equipment packaging process Packaged equipment ready for shipment Equipment delivery and installation
